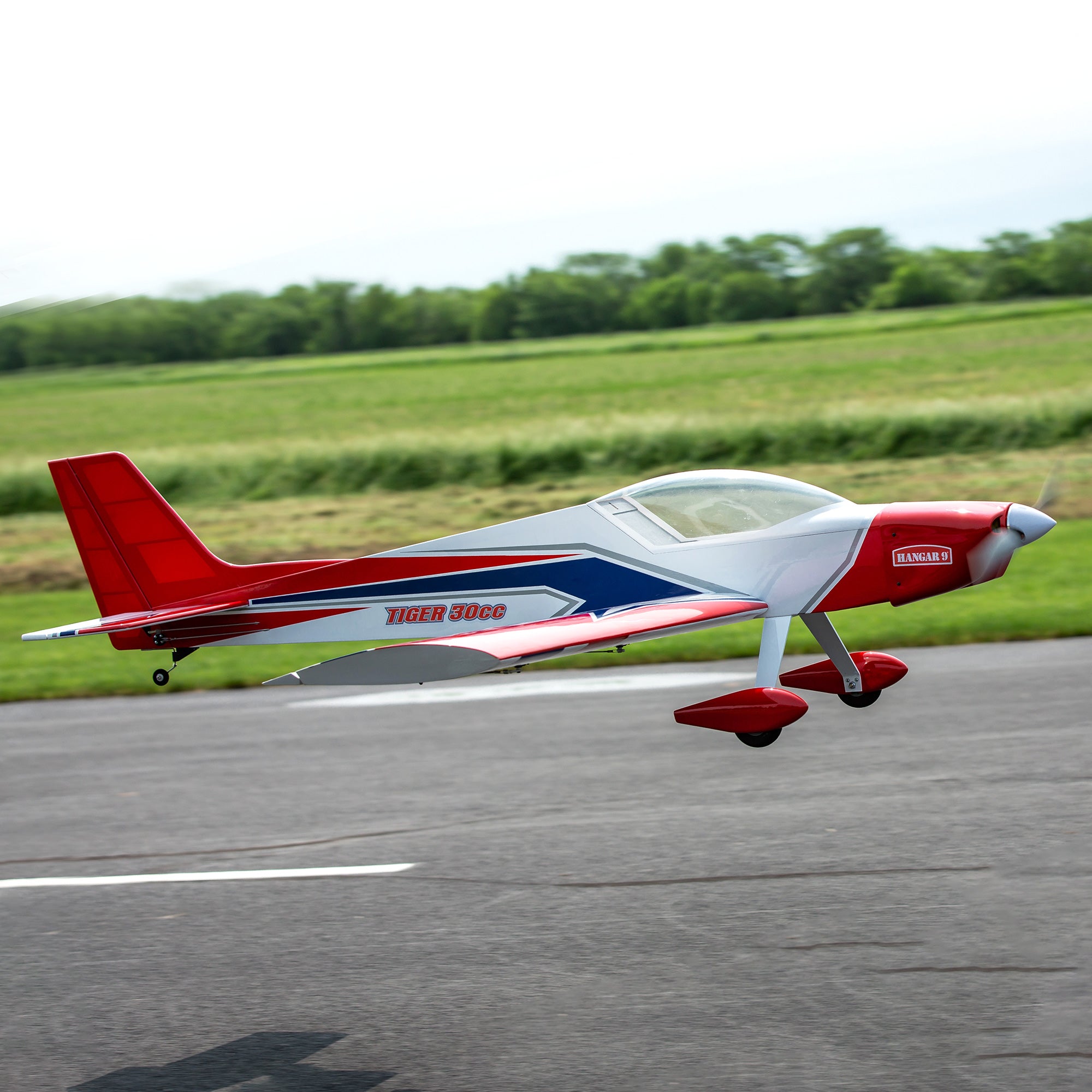

For the balsa enthusiast, the new Hangar 9® Tiger 30cc delivers the classic looks and performance of the popular Tiger series in a larger 30cc platform for common gas engines and electric power systems. Taking its cues from the Tigers of old, this sport plane is streamlined with a complete fiberglass cowl requiring no additional work to get ready for the runway. A smart red, white, and blue color scheme highlights the modern sport plane's looks with nods to its rich past.
Bigger than the Tigers of yesterday, it only needs a 30cc-class gas/petrol engine to deliver outstanding performance. Lightweight design, combined with high-grade balsa and plywood construction, is used with laser accuracy to provide everything you could want in a giant scale sport model. The large canopy hatch provides easy access to radio gear, batteries and fuel system while the pre-hinge control surfaces save you time when building. The bolt-on two-piece wings provide easy transportation and handling. If you're looking for a big sport airplane with ties to the radio control flying past and can do it all with a modern flair, the Tiger 30cc airplane is for you.
The Tiger 30cc ARF is part of the complete line of top-quality Hangar 9® aircraft and accessories. All are engineered and crafted to exacting standards and feature the finest components and materials. Plus, every Hangar 9 product comes with the after-sale service and technical support you need to succeed.
Videos
Features
- Lightweight balsa and plywood construction for a strong and lightweight airframe

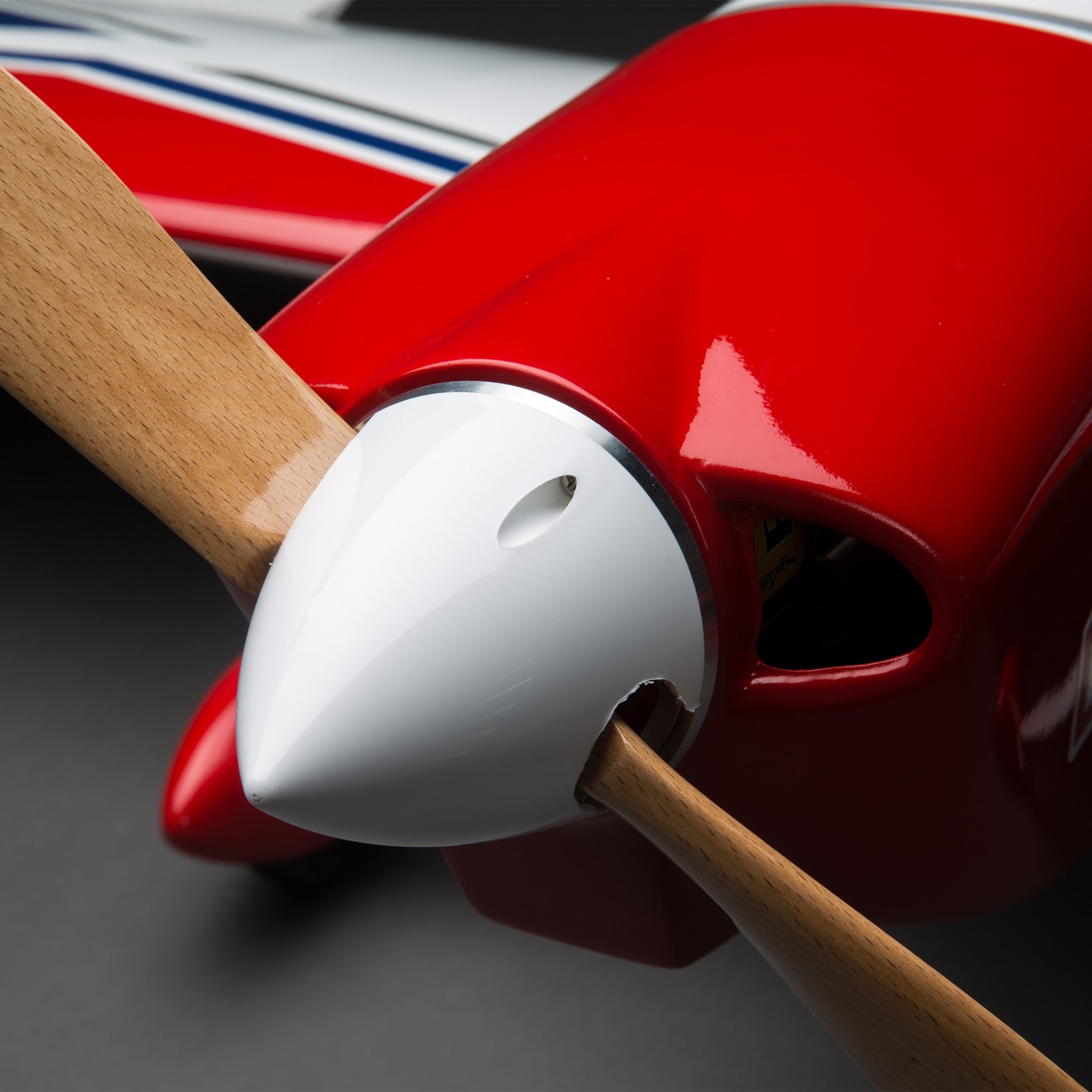

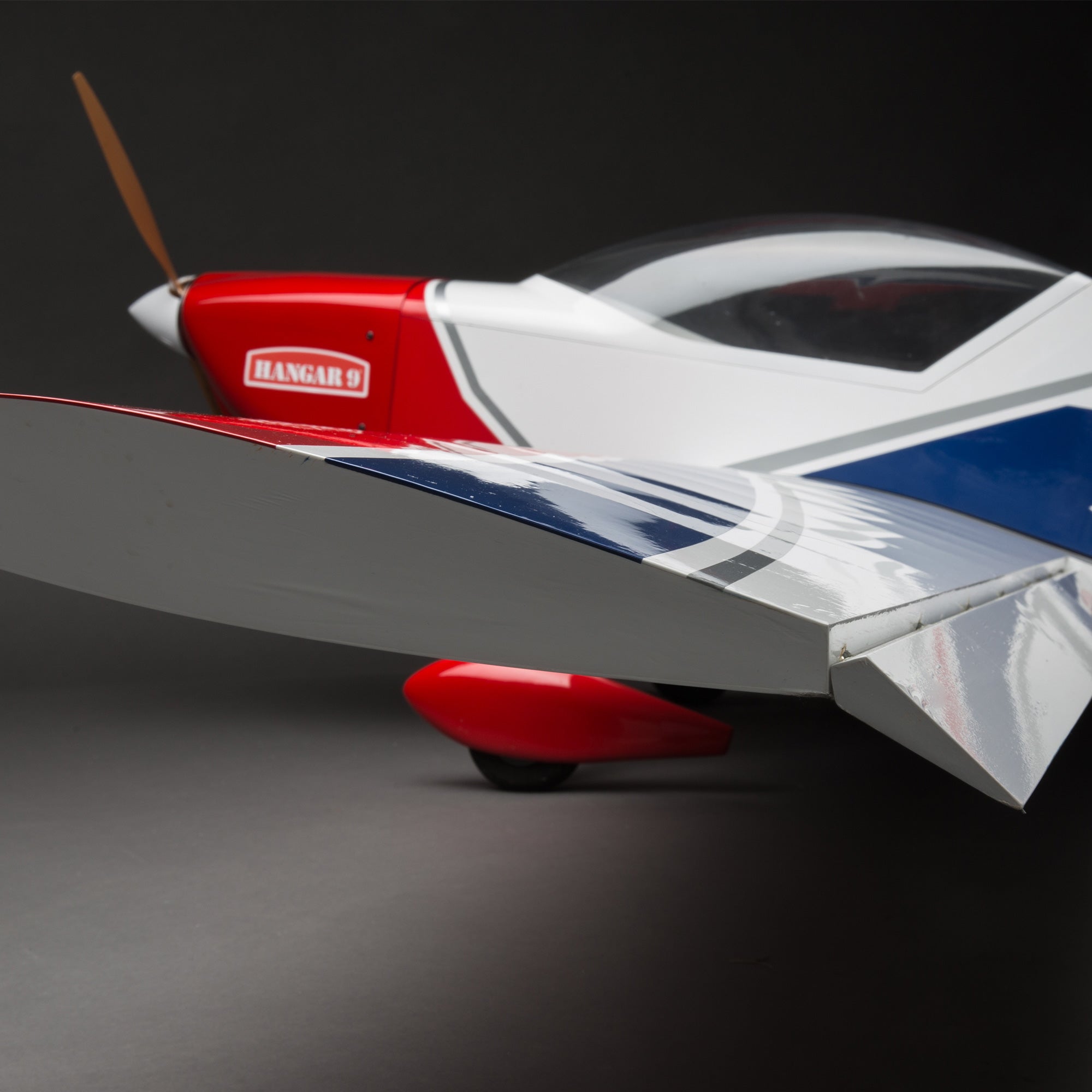

- Fiberglass cowl requires no finishing by the customer
- One-piece painted aluminum landing gear attaches to fuselage
- Finished fiberglass wheel pants matches the covering perfectly

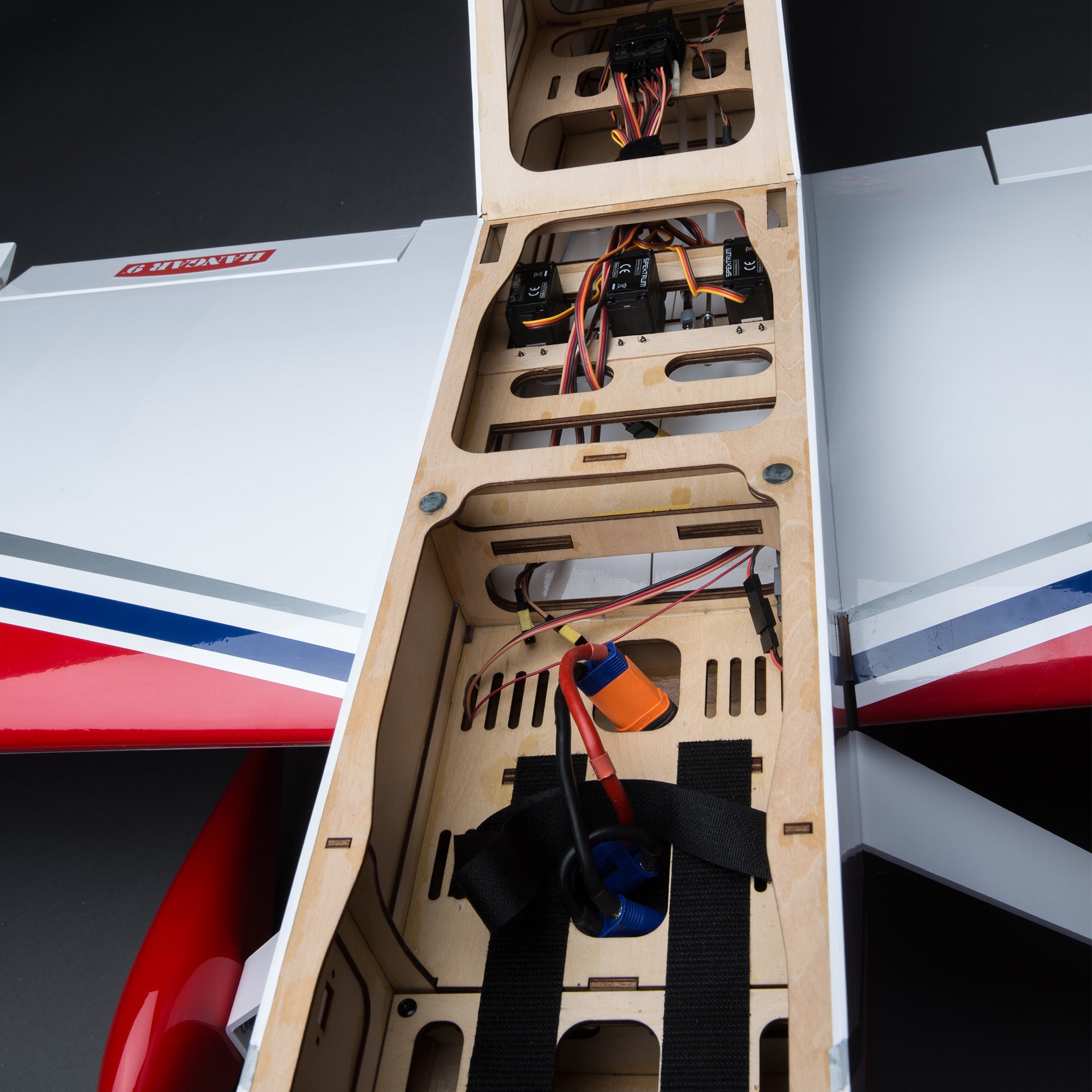

- Large canopy hatch provides easy access to radio gear, batteries and fuel system
- Bolt-on two-piece wings for easy transportation and handling

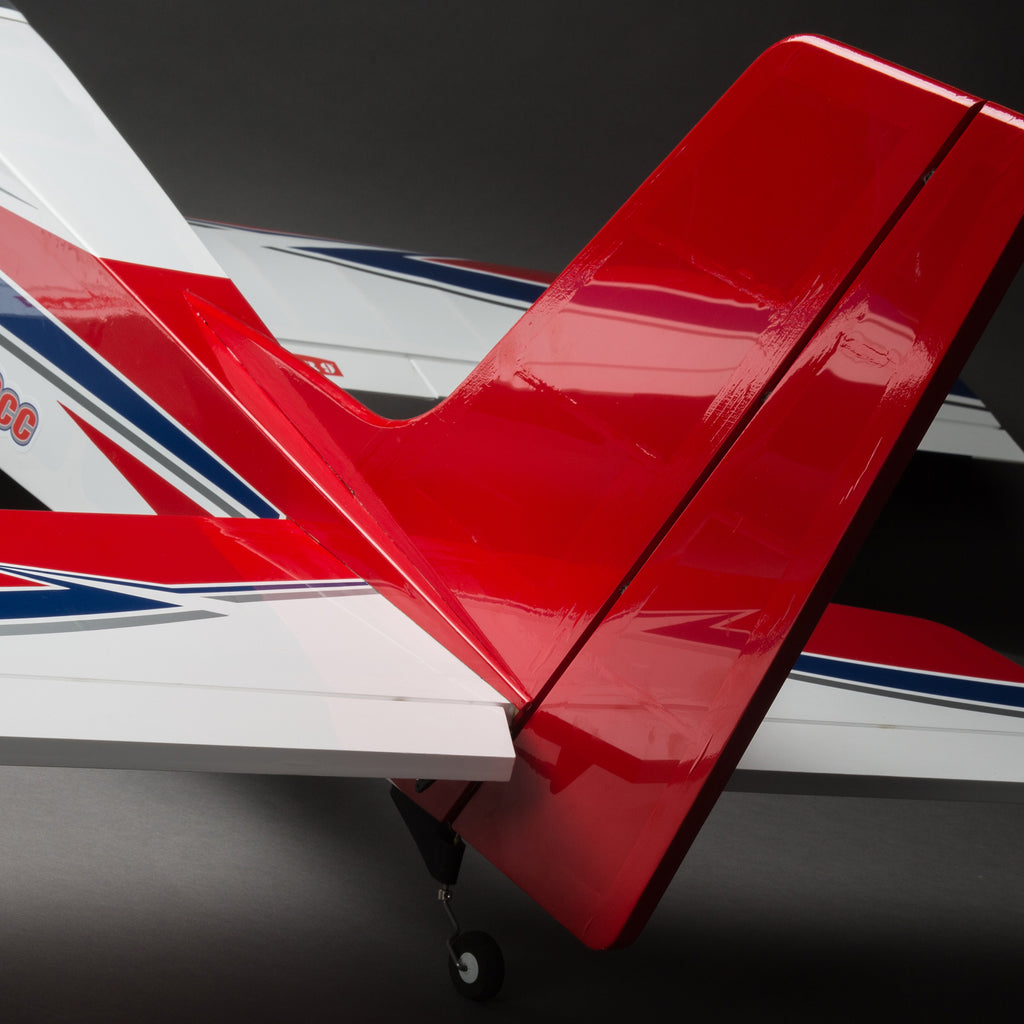

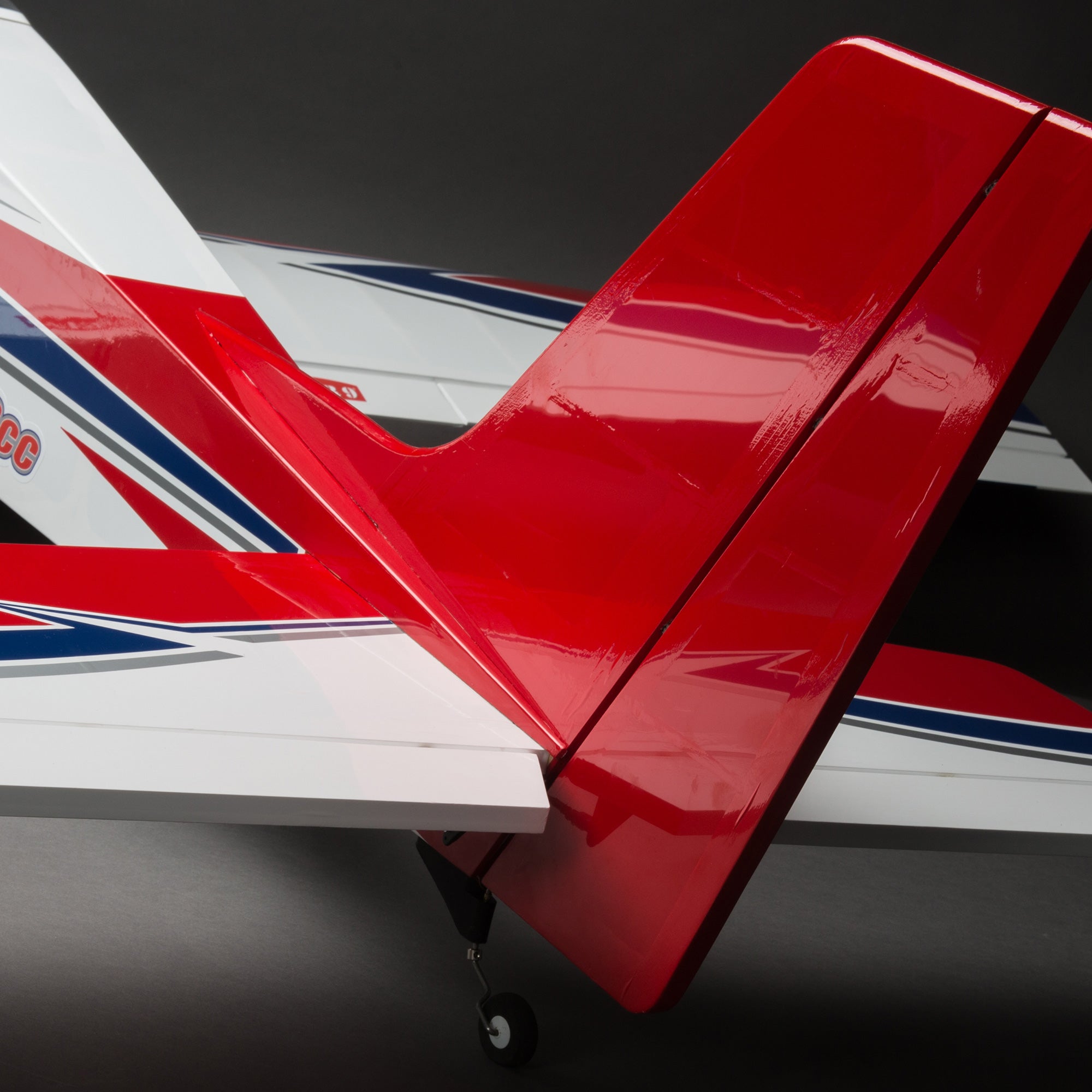

- Steerable tail wheel
- Taildragger gear configuration

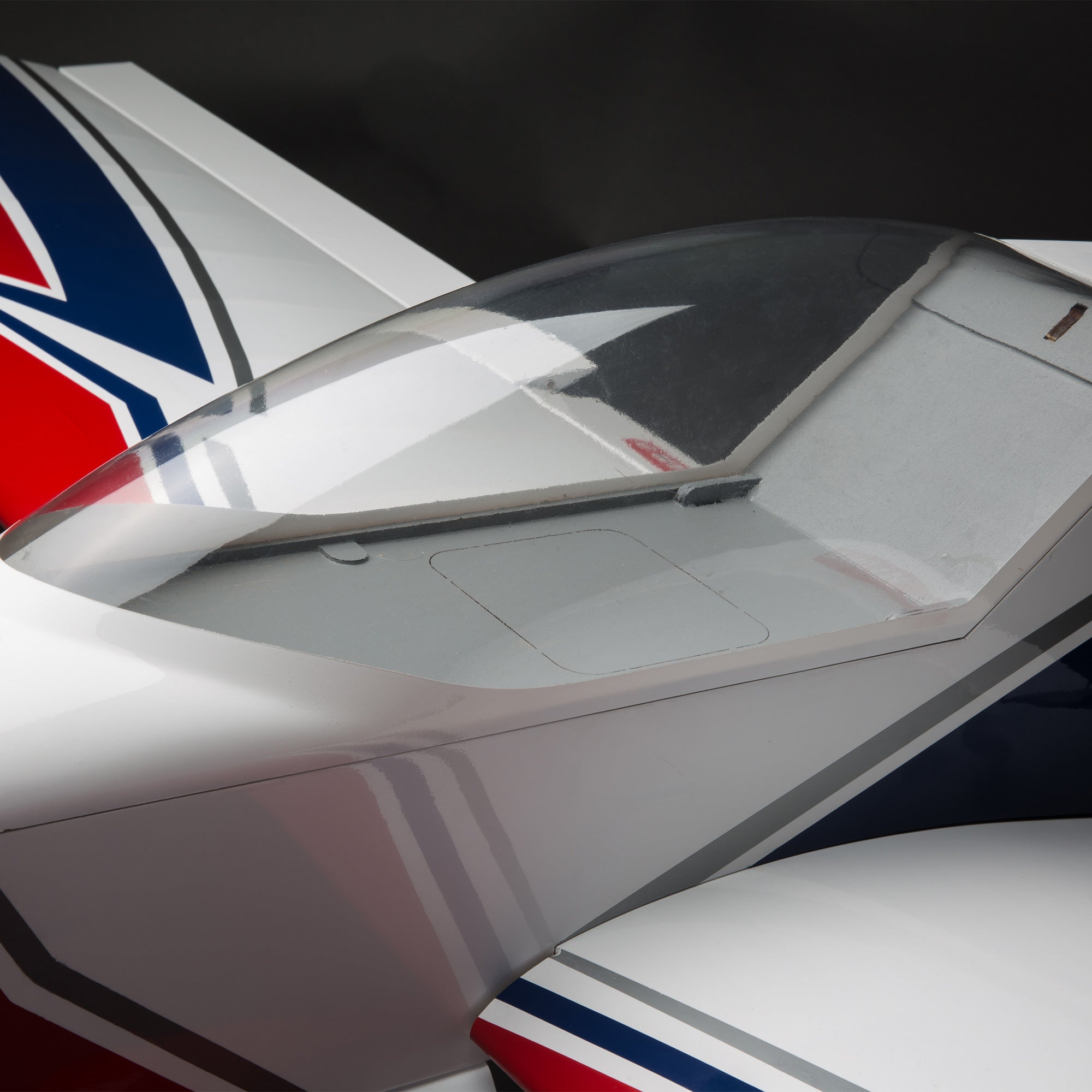

- Clear canopy
- Full-span ailerons with option for functional flaps
- Pre-hinge control surfaces help you save on build time
- Included decal sheet allows you to customize the look of your aircraft
- Complete hardware package included
- Designed to accept gas/petrol engines and electric motors
Specs
| Airfoil Shape | Semi-symmetrical |
|---|---|
| Approximate Assembly Time | 15-20 Hours |
| CG (Center of Gravity) | 3.5 - 5" (89 - 127mm) measured from leading edge of wing at fuselage side |
| Charger | Sold Separately |
| Completion Level | Almost Ready-To-Fly |
| Engine Size | 1.8 cu in (30cc) |
| LiPo Compatibility | 6S |
| Material | Wood |
| Minimum Required Radio | 6-channel |
| Motor Size | 160 - 180 brushless outrunner |
| Outer Diameter | 1.125 in (30mm) |
| Power Type | Electric/Gas |
| Product Length | 78" (1.98m) |
| Receiver | Sold Separately |
| Recommended Motor Battery | Two 6S 5000mAh LiPo |
| Skill Level | Level 4 |
| Speed Control | Sold Separately |
| Spinner Size | 3" (76.2mm) (sold separately) |
| Transmitter Range | Full range |
| Trim Scheme Colors | Red, White, Sapphire Blue and Aluminum |
| Wing Area | 1417.5 sq in (91.45 sq dm) |
| Wing Loading | 26 - 29 oz/sq ft (79.34 - 88.49 g/sq dm) |
| Wingspan | 90" (2.28m) |
In the Box
- (1) Hangar 9 Tiger 30cc ARF
- (1) Product manual
Needed to Complete
- For Gas Engine or Electric Motor Setup:
- (1) Full-range, 6+ channel radio system
- (5-8) Standard High-Torque Servos
- (5-8) 9-18 Inch Heavy Duty Servo Extensions
- (1) Battery for receiver
- (1) 3 inch spinner
- Tools and adhesives (see manual for complete list)
- For Gas Setup:
- (1) DLE-35RA or similarly sized 30cc 2 or 4 stroke gas engine
- (1) Battery for electronic ignition
- (1) 18x10 Wood Propeller
- Gas tubing and fuel filler
- For Electric Setup:
- (1) 160-180 Brushless Outrunner Motor
- (1) 90-Amp+ Electronic Speed Control
- (2) 6S 22.2V 5000-7000mAh LiPo Batteries
- (1) 18x10 Electric Propeller
