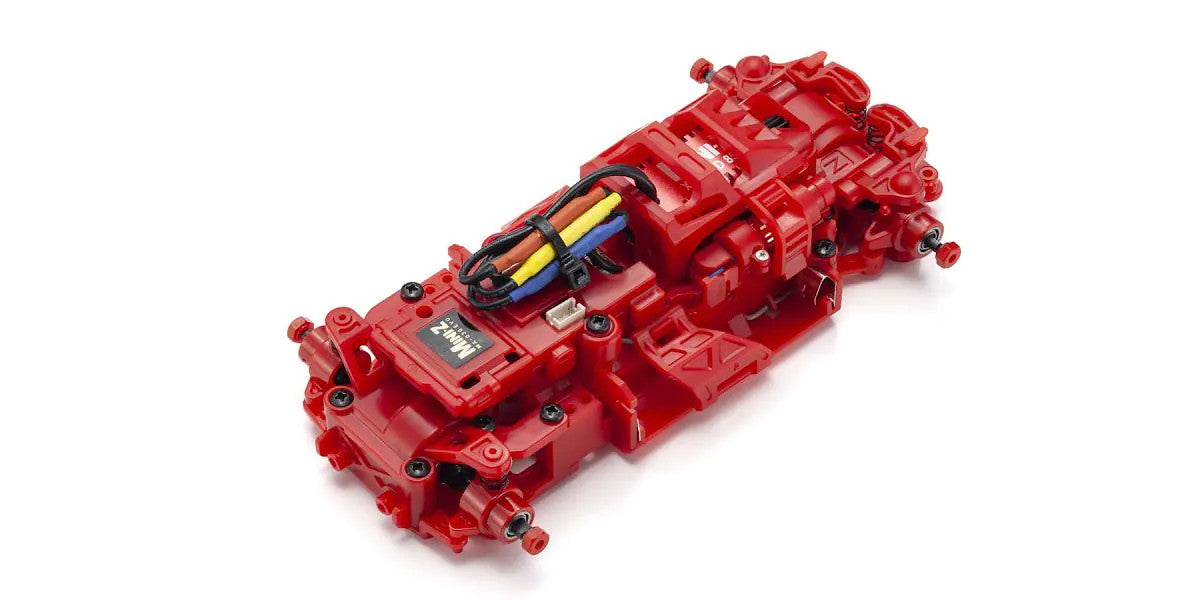

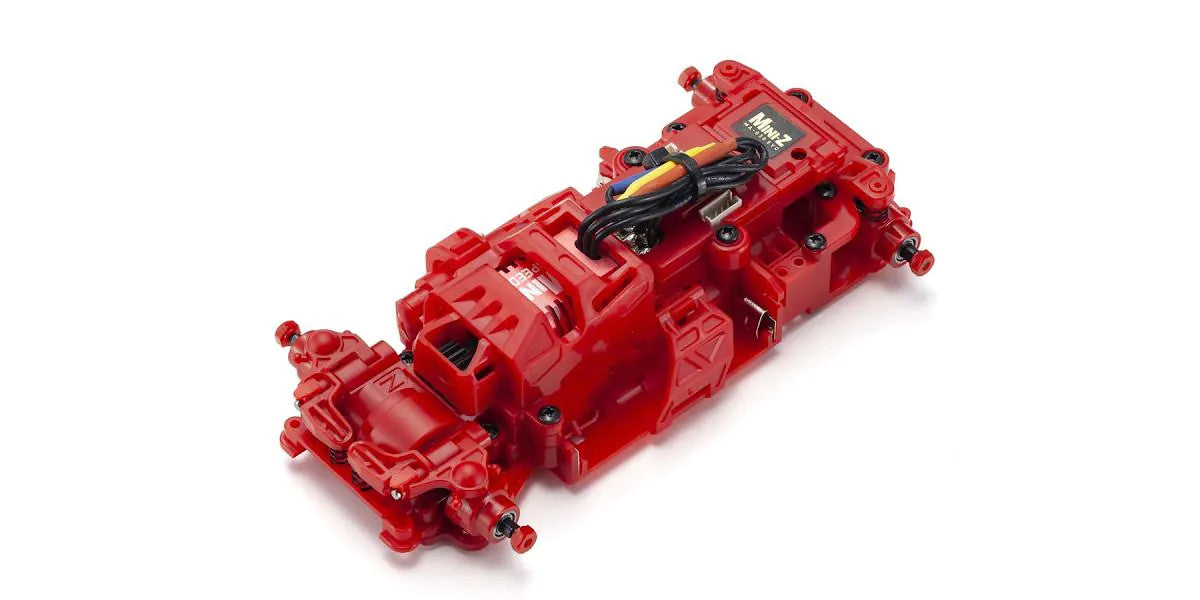

MINI-Z AWD MHS／ASF2.4GHz System MA-030EVO Chassis Set Red Limited

MINI-Z AWD MHS\uff0fASF2.4GHz System MA-030EVO Chassis Set Red Limited — an officially-licensed scale body riding on Kyosho's legendary MR-03 Mini-Z RWD chassis. Factory-finished, factory-painted, and Readyset-RTR: drop in batteries, pair the included 2.4 GHz Syncro KT-531P transmitter, and you're driving in minutes.

Introducing the MA-030EVO Chassis Set Red Limited edition! The MA-030EVO Red Limited equips with special red color parts throughout the chassis! The MINI-Z was originally designed with an integrated receiver, servo and speed controller, however on the MR-030EVO the receiver was designed to be purchased and installed as a separate unit to allow the model to be used with other makes of transmitter such as KYOSHO (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO PROPO (EX-2/EX-RR/EX-NEXT), Futaba (T10PX/T7PX/T7XC/T4PM/T4PM Plus), and Flysky (Noble NB4). In addition, the MA-030EVO is installed with a high spec 5-stage gear type servo.

Why the MR-03 RWD Platform?

• True rear-wheel-drive feel — momentum-based driving that rewards smooth throttle inputs, just like the real thing
• Wide tuning window — swappable motor mounts (LM/MM/HM), pinions 6T-9T included, adjustable front tread & suspension spacers
• Compact 1/27 scale — drives in a parking spot or your living-room loop, but is fully compatible with the global Mini-Z racing scene
• 2.4 GHz Syncro KT-531P radio with sport-grade trims and dual-rate steering

Specifications

• Scale: 1/27.6
• Length: 126.0mm
• Width: 65.0 - 76.0mm (adjustable by wheel offset)
• Height: 36.0mm
• Chassis Type: MA-030
• Wheelbase: 94.0mm (only with strut rear suspension installed), 98.0mm (factory assembled)
• Weight: 135g
• Brushless 8500KV
• Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
• Tire Diameter (F/R): sold separately
• Tire Width (F): sold separately
• Tire Width (R): sold separately
• Transmitter: Not included
• Top speed: approx. 17km/h
• Runtime: approx. 50min.Length: 126.0mm

What's in the Box

• ＜CHASSIS SET CONTENTS＞
• Factory-assembled chassis equipped with EVO main unit installed (Receiver is not included)
• Pinion Gears (15T, 17T, 19T, 21T)
• DWS conversion parts and Front width conversion parts
• Pinion gear removal tool
• Spare wheel nuts
• Wheel wrench
• Center shaft for L wheelbase
• Wide rear suspension arms for DWS
• swing shafts (4 x long)
• Spur gears (27T, 29T, 31T)

Required to Run

• 8 x AAA batteries
• Auto Scale Collection (body, wheels and tires)
• Transmitter
• MINI-Z EVO receiver unit compatible with the transmitter used

About Kyosho Mini-Z

The Mini-Z line has been the gold standard for serious 1/27-scale R/C since 1999. Kyosho's RWD series — first launched in 2013 and continuously refined — pairs the legendary MR-03 chassis with new licensed body shells from across motorsport history. As an authorized dealer, Podium Hobbies ships every Mini-Z factory-sealed with full Kyosho warranty support.

Genuine Kyosho part #32180R. Photos & specifications courtesy of Kyosho America.
