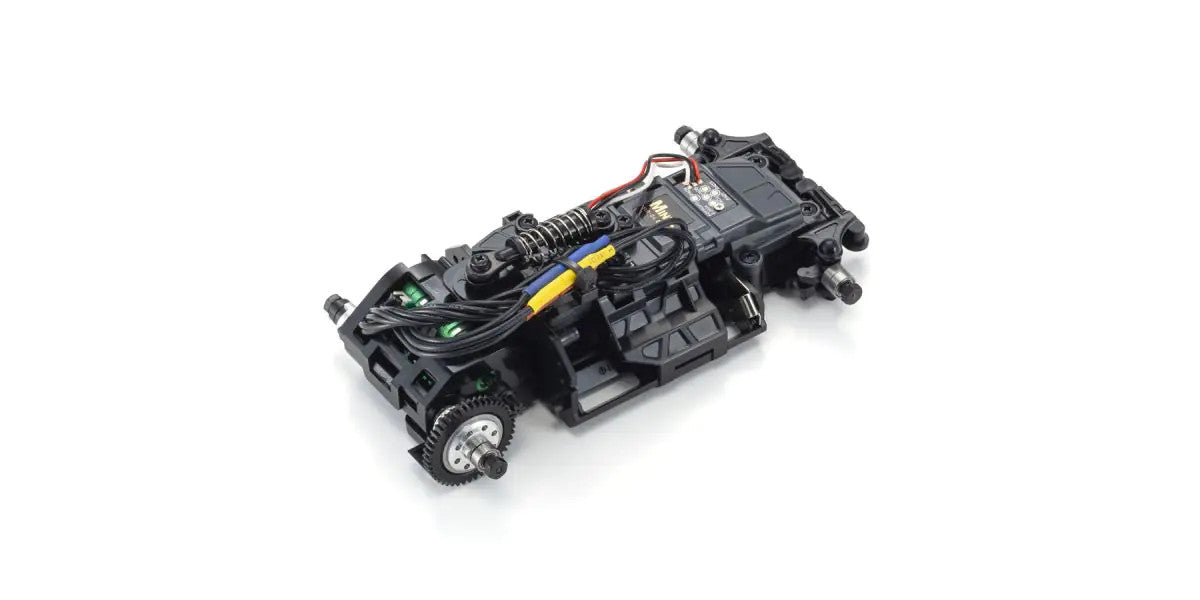

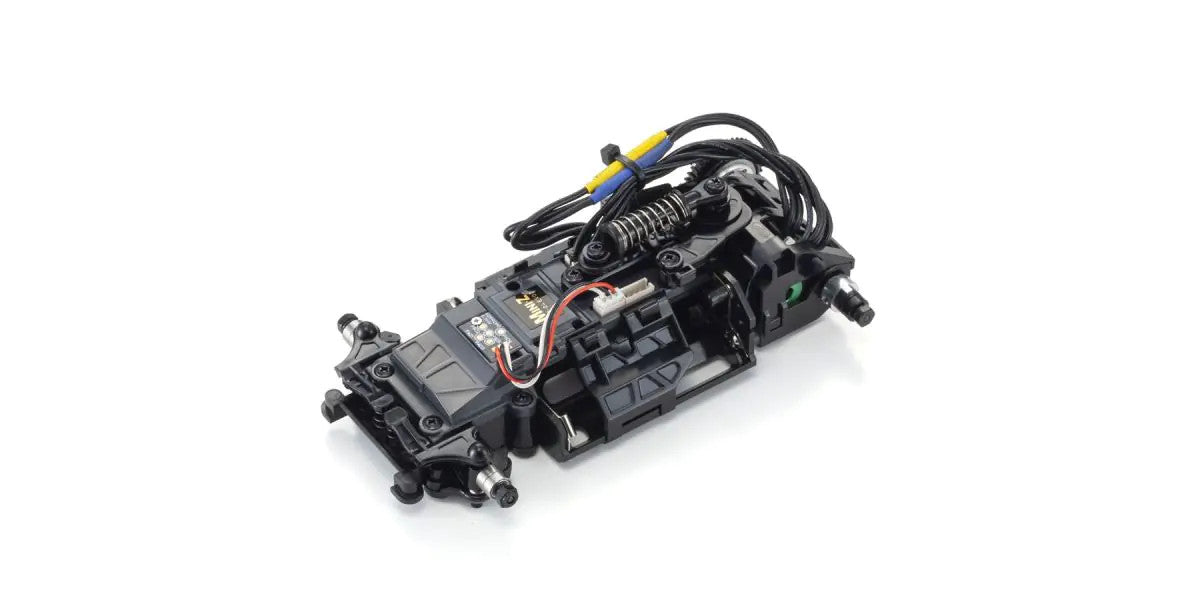

MINI-Z Racer MR-04EVO2 Chassis Set (N-MM2/4100KV) w.V2 Gyro
MINI-Z Racer MR-04EVO2 Chassis Set (N-MM2/4100KV) w.V2 Gyro
MINI-Z Racer MR-04EVO2 Chassis Set (N-MM2/4100KV) w.V2 Gyro — an officially-licensed scale body riding on Kyosho's legendary MR-03 Mini-Z RWD chassis. Factory-finished, factory-painted, and Readyset-RTR: drop in batteries, pair the included 2.4 GHz Syncro KT-531P transmitter, and you're driving in minutes.
No boundaries, no compromises! New gyro improves cornering performance! At the end of 2023, the Mini-Z MR-04EVO2 underwent a full model change after 14 years. Building on the MR-03’s proven layout, the MR-04EVO2 model introduced a sensor-equipped brushless motor, a redesigned front suspension, and a lower battery position—resulting in a major performance leap.
Why the MR-03 RWD Platform?
- True rear-wheel-drive feel — momentum-based driving that rewards smooth throttle inputs, just like the real thing
- Wide tuning window — swappable motor mounts (LM/MM/HM), pinions 6T-9T included, adjustable front tread & suspension spacers
- Compact 1/27 scale — drives in a parking spot or your living-room loop, but is fully compatible with the global Mini-Z racing scene
- 2.4 GHz Syncro KT-531P radio with sport-grade trims and dual-rate steering
Specifications
- Length 120.6mm
- Width 67～76mm
- Height 35mm
- Motor Mount MM2
- Wheelbase 94.0mm（L）
- Tread（F／R）58.5～65.0mm／61.5～65.0mm
- Tires (F/R) φ25×8.5mm（sold separately）／φ25×8.5〜11mm（sold separately）
- Gear Ratio 7.3、6.3、5.5、4.9：1
- Weight 138.0g （Body / tires / wheels not included.）
- Motor KYOSHO SPEED HOUSE / XSPEED 41 (KV4100)
What's in the Box
- MR-04EVO2-N-MM2 Factory assembled chassis with KYOSHO SPEED HOUSE KV4100 brushless motor
- Parts set for changing front tread
- 6T・7T・8T・9T Pinion gears
- Wheel wrench
- Tools for pinion gears
- Spare wheel nuts
Required to Run
- Transmitter
- Receiver unit (Compatible with EVO/EVO2)
- ASC (AutoScale Body)
- AAA x 4 batteries for chassis
- Batteries for transmitter
About Kyosho Mini-Z
The Mini-Z line has been the gold standard for serious 1/27-scale R/C since 1999. Kyosho's RWD series — first launched in 2013 and continuously refined — pairs the legendary MR-03 chassis with new licensed body shells from across motorsport history. As an authorized dealer, Podium Hobbies ships every Mini-Z factory-sealed with full Kyosho warranty support.
Genuine Kyosho part #32895G. Photos & specifications courtesy of Kyosho America.
