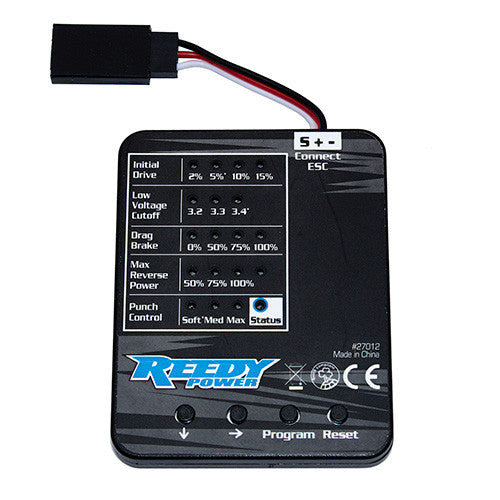

Reedy SC480X Program Card

The pre-programmed default ESC settings work very well in most situations, but if you want access to additional settings for fine-tuning, you can do so using optional Program Card (#27034). The following settings can be changed using the Program Card:

Initial Drive: Throttle applied the moment the trigger is moved from the neutral position to the throttle range.
Low-Voltage Cutoff: The cell voltage at which the ESC will shut off to protect the battery.
Drag Brake: The brake force applied when the throttle trigger is returned to the neutral position.
Max Reverse Power: The maximum reverse speed allowed relative to the forward speed.
Punch Control: The aggressiveness of the application of throttle.

This part fits the following other parts

• #27011 - Reedy SC480X Brushed Crawler ESC
• #27013 - Reedy SC500X Brushed ESC

Manuals/Documents

• Reedy SC480X ESC and Program Card -- press release (359.92 Kb)
• Reedy SC480X ESC manual (655.26 Kb)
